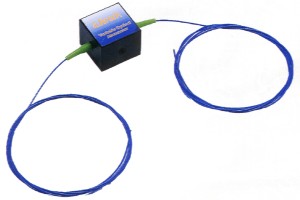

可調式光衰減器

 FEATRES
 Compact size
 High resolution
 Environmentally stable and reliable
 APPLICATIONS
 Telecommunications
 EDFA
 Laboratory R&D
 Local Area Networks (LAN)
功能:可將通過之光信號之功率作可調適比率之衰減。

SPECIFICATIONS

Operationf Wavelength (nm)

1200 to 1600

Residual Attenuation (dB)

1.5 (Max) , 1.2 (Typical)

Attenuation Range (dB)

55

Resolution (dB)

0.15

Optical Return Loss (dB)

55

Polarization Sensitivity (dB)

0.2 for 15dB, 0.6 for 15~55 dB range

Operating Temperature ()

0 ~ +75

Storage Temperature ()

-40 to +85

Thermal Stability (dB/)

0.03

Optical Power (mw)

300

Package Dimension (mm)

25(L) × 25(W) × 20(H)

Values are referenced without connector(s)
