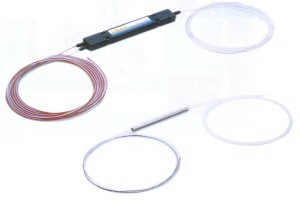

Fusion Typs

單模波長多工器

 FEATRES
Low polarization sensitivity
Low insertion loss
Compact size High directivity
Bi-directivity
Environemntally stable and reliable
 APPLICATIONS
Telecommunications
Subscriber Loop
Firber-to-th-Home networks
CATV
Local Atea Networks (LAN)
Optical Fiber Sensors

功能:將二個不同波長的信號結合或分開;多工器可把二個不同波長的光信號結合注入到一根光纖中﹔相反地,解多工器則把不同波長的信號分離出來。

SPECIFICATIONS FOR 1310/1550 WDM

Operating Wavelength(nm)

1310/1550  ± 20nm

Grade

A

B

2 Stage

3 Stage

Max. Insertion Loss (dB)

0.3

0.5

0.7

1.1

Min Isolation (dB)

16

12

30

45

PDL (dB)

0.1

0.2

0.15

0.15

Directivity (dB)

55



SPECIFICATIONS FOR 980/1550,1480/1550,1550/1650, WDM

Operating Wavelength(nm)

980/1550±20nm

1480/1550±20nm

1550/1650±20nm

Grade

A

B

A

B

A

B

Max. Insertion Loss (dB)

0.3

0.6

0.4

0.6

0.6

1.0

Min Isolation (dB)

20

18

12

10

12

10

PDL (dB)

0.1

0.15

0.15

0.15

Directivity (dB)

55

Operating Temp. ()

-40 to +85*

Temp. Coefficient (dB/)

0.002

Storage Temp. ()

-50 to +85

Package Dimension (mm)

Coated Fiber : 3.0(OD) × 54(L)  Loose Tube : 3.5(OD) × 65(L)

PVC : 95(L)×14(W)×8.0(H) , 2-stage/3-stage : 100(L)×80(W)×12(H)

Values are referenced without connector(s)


* -20 ~ 70 for PVC Cable
