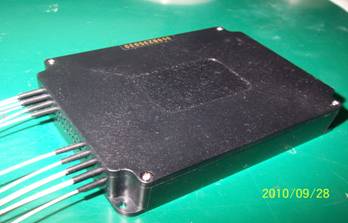

Parameter
|
Mux
|
Demux
|
mux
|
Demux
|
mux
|
Demux
|
|
Center Wavelength(nm)
|
1500nm Windows,
ITU Grid
|
|
Center Wavelength accuracy
(nm)
|
≦ 0.1
|
|
Channel Spacing(Ghz)
|
100﹙0.8nm﹚
|
|
No. of Channel
|
4
|
8
|
16
|
|
Channel Passband (nm)
|
ITU± 0.11
|
|
Insertion Loss(dB)
|
≦3.0
|
≦4.5
|
≦6.0
|
|
Uniformity (dB)
|
≦1.0
|
≦1.5
|
≦2.5
|
|
Passband Ripple (dB)
|
≦0.5
|
≦0.5
|
≦0.5
|
|
Adjacent Channel Isolation
(dB)
|
≧15 ≧30
|
≧15 ≧30
|
≧15 ≧30
|
|
Non-adjacent Channel
Isoation (dB)
|
N/A
≧35
|
N/A
≧35
|
N/A ≧35
|
|
Insertion Loss Temperature
Sensitivity (dB/℃)
|
≦0.005
|
|
Wavelength Temperature
Sensitivity (nm/℃)
|
≦0.002
|
|
Reture Loss (dB)
|
≧45
|
|
Directivity (dB)
|
≧55
|
|
Polartization Dispersion
Loss (PDL) (dB)
|
≦0.2
|
|
Polarization Mode Dispersion
(ps)
|
0.2
|
|
Operating Temperature (℃)
|
- 20 to + 70
|
|
Storage Temperature (℃)
|
- 40 to + 85
|
|
Package Dimension (mm)
|
(L)
× (W) × (H)
=100×80×8
|
(L)
× (W) × (H)
=125×90×8
|
(L) × (W) × (H)
=125×90×16
|
| Values
are referenced without connector(s) |
|

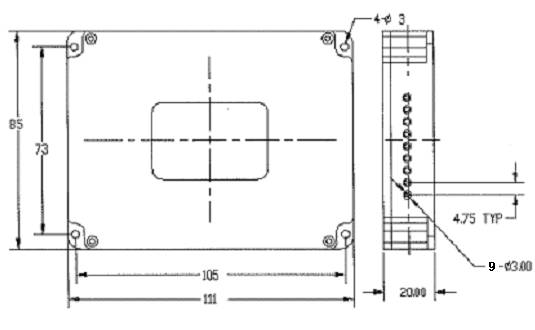

◎Outline
Drawing
|
